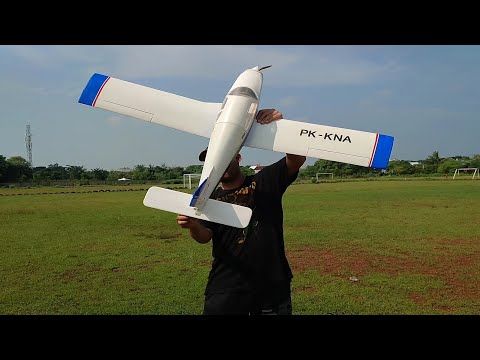

I Design and Build RC Plane Trainer for My Son to Learn to Fly.

Another trainer type plane. I build this for my son and my daughter's friends to learn to fly an RC plane. I made it with 1500 mm wingspan because I was inspired by XFly Tasman RC Plane, I already try to fly it and thought I will build a trainer with the same size wingspan. I named this trainer plane "Dara" that means "Pigeon" in Indonesian. Also it has different means, that is a girl. Dara actually inspired by Tecnam P2010 trainer plane, but I change the wing shape and simplify the fuselage lines. Plans available here : Join this channel to get access to perks: Specs : 1. Wingspan 1500 mm / 59 inches 2. Flying weight : 1530 grams/ 54 oz / lbs 3. Wing loading : 41.8 gram/dm2 - 13.7 oz/ . 4. Wing cube loading : 6.9 (Trainer) 5. Wing Area : 36.6 dm2 / 567 . 6. CG : 6.5 cm / inch from leading edge Electronics for test - DXW 3536 1200kv Brushless motor - 60A ESC Hobbywing Skywalker - Battery Lipo 3S 2200mah - Battery Lipo 4S 2200mah - 5 x 9 gram servos (metal micro servo) Prop : - 10x6 props - 50mm 3D printed spinners Transmitter - Jumper T16 + BetaFPV Express LRS TX module - 5 ch BetaFPV Express LRS RX
