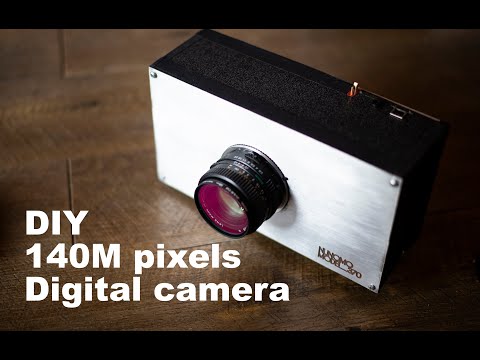

Project Gigapixel is a DIY "medium format" camera built by reverse engineering epson scanner sensors capable of capturing up to 80k x 40k px ( ) 16b images with multiple sensor resolution modes. Using a raspberry pi 5 with piolib to directly control the CCD interface and capture lines to a C++ / Qt application. Chapters: 0:00 Intro 1:40 Scanner Disassembly 4:00 CCD Protocol Analysis 12:00 Assembly 19:10 UI Demo 22:50 Image capturing 28:40 Line cam mode 30:20 Outro Lenses: Pentax 6x7 SMC F4.5 75mm Pentax 67 F4 200mm Used components: Raspberry pi 5 4GB Linear rail 100mm 4mm pitch: Freenove m.2 nvme adapter: TMC2209 stepper driver: 8" DSI Touch-A screen: IR cut filters: IMX219 camera: Project details: Patreon: More pictures: @N07/albums/72177720329941428 Discord: Contact options on my github profile:
